CH-24MSPHCT-230VI - COOPER&HUNTER Cooling and Heating Solutions

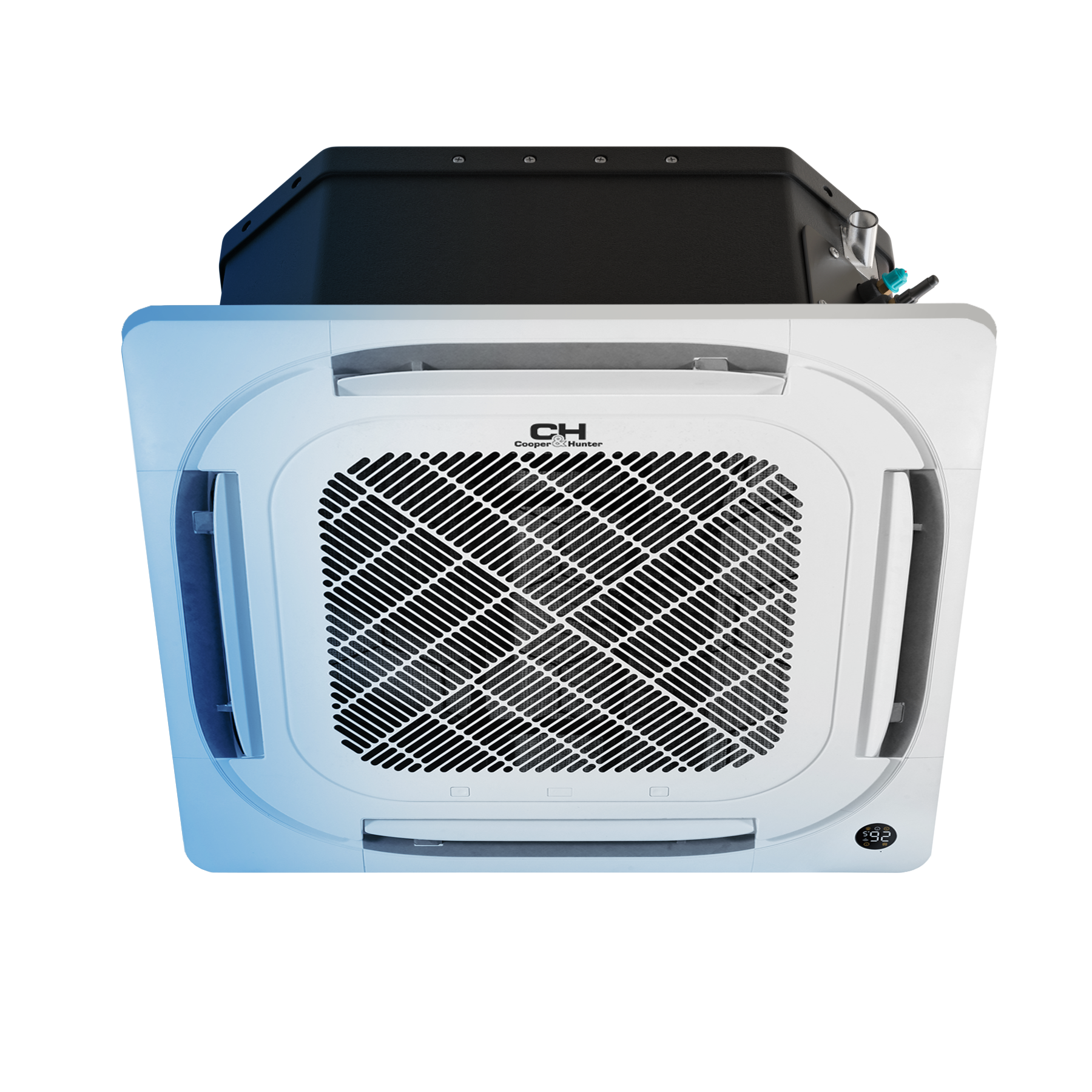

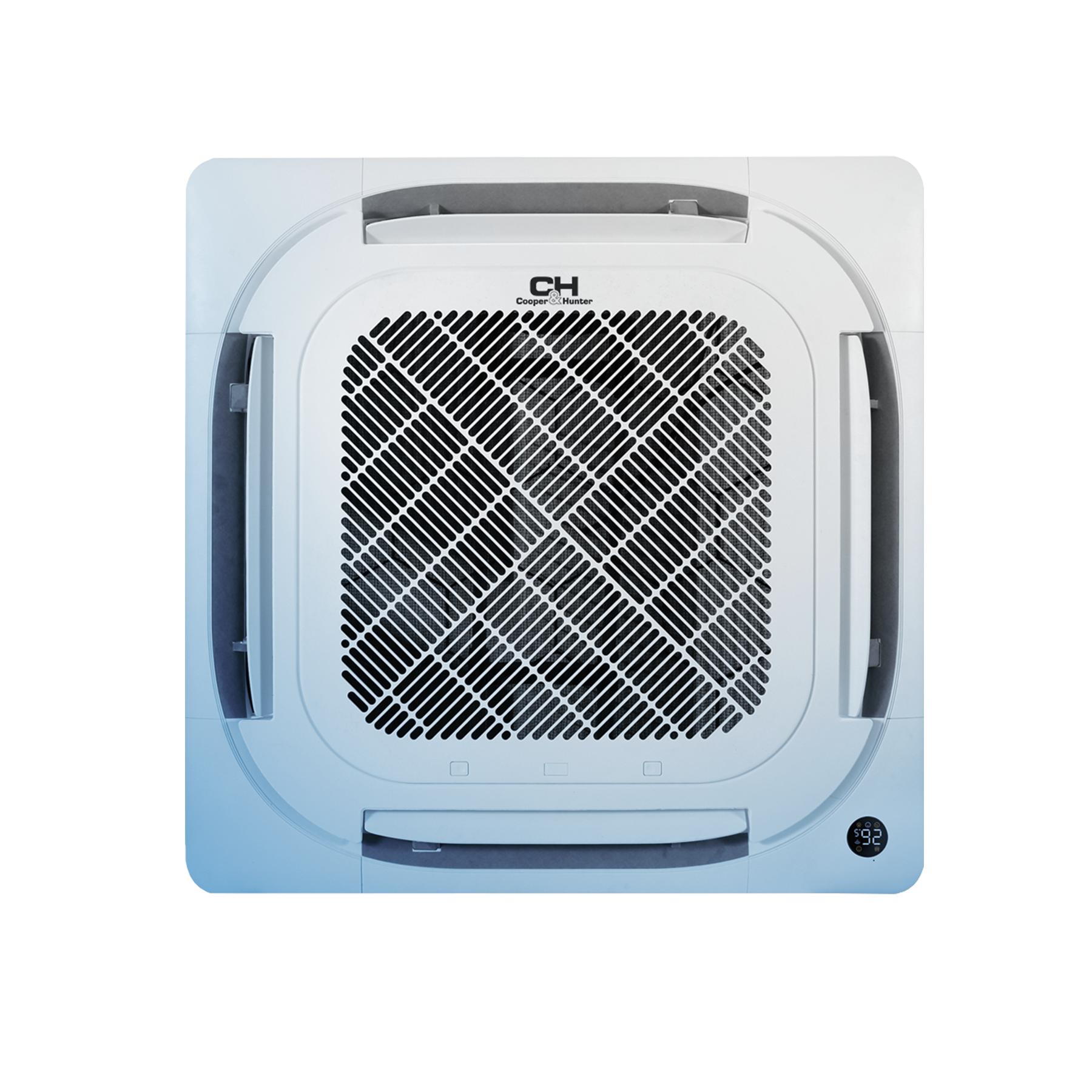

Ceiling Cassettes fit into a standard ceiling grid, a convenient solution for offices and businesses with space above the ceiling. They provide omni-directional airflow and are available from 9K to 48K Btu/h.
Single/Multi-zone unit
Full Description
Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid. These units can be used for almost any application, as long as there is enough space above the ceiling itself. Ceiling Cassettes provide omni-directional air flow and can be conveniently controlled by remote control or C&H remote app. Ceiling Cassettes are available in 9K, 12K, 18K, 24K, 36K, and 48K Btu/h models.
Technical Specification
System type
Single/Multi-zone unit
BTU Rated
24,000
Power source
208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day)
5.17
Voltage range (V)
187-253
Packing dimensions (WxDxH)
35.43*35.43*8.86
Controller
RG10K-exclusive remote&120X or 120N wire controller
Refrigerant piping Liquid/Gas side (inch)
3/8" - 5/8"
More Features
LED display
An LED display is practical while offering a modern look to the A/C unit.
Louver memory
Automatic operation
Self-diagnosis
Goldfin coating
Smart KIT Ready
Multiple fan speeds
Sleep mode
Timer
Auto-restart function
