CH-36AHU

If you need some help with product please visit support page
support materials
Cooling Capacity (nominal)
36000
Power source
208-230V,1Ph,60Hz
Refrigerant precharge
25
Rated Current Heating
9.5
Rated Current Cooling
11
Port Size (Liquid - Gas/Suction)
3/8" - 5/8"
Outdoor Refrigerant/Charge
R410A/91.7
Outdoor Compressor Type
Rotary

Standard Features

Air handler units offer a versatile replacement for traditional air conditioning systems that can be connected to pre-existing duct work, but with smaller units that are quieter (variable speed fan motor) and more energy efficient. The air handlers, which are available in 18K, 24K, 36K, 48K, and 60K Btu/h models, can be installed vertically, horizontally, or downward. These units can be connected to any 24V wall thermostat and are compatible with standard 18K to 60K Btu/h outdoor models or Hyper Heat upgrades, which provide dependable heating in ambient temperatures as low as -22°. Models ranging from 36K to 60K Btu/h work for single zone applications, while 18K and 24K Btu/h are compatible with both single and multi zone condensers. Notable features include high static pressure and Quiet Operation.

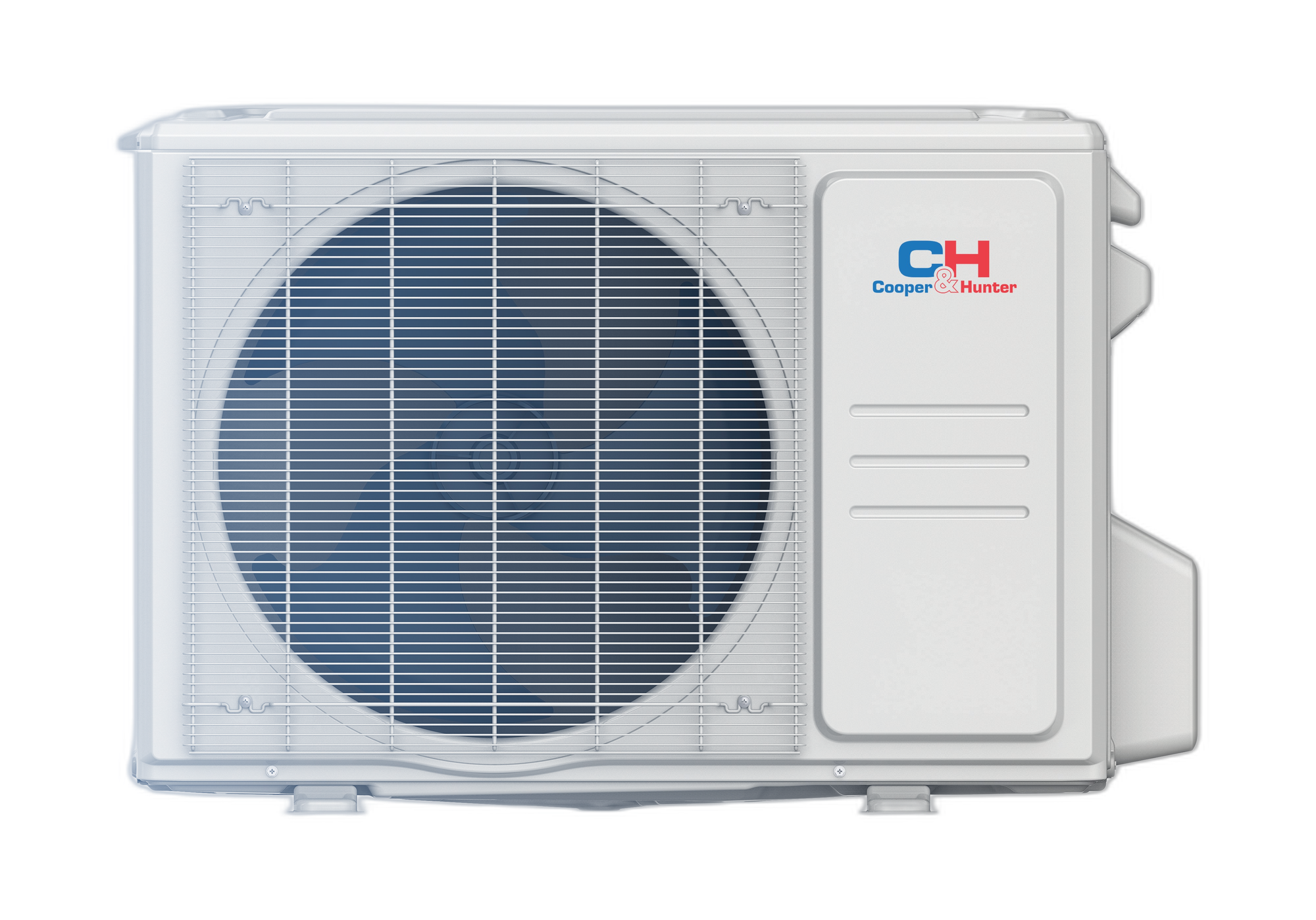

This unit can work with these outdoor units:

Regular

Hyper
