CH-RS48LCDT-HS - COOPER&HUNTER Cooling and Heating Solutions
The 48K Btu Slim Duct uses the new R454B refrigerant to meet varied climate control needs with precision and efficiency. It is designed for Single-zone and Light Commercial applications and hides away without the loss of ducted systems.
Single Zone
R454B
Full Description

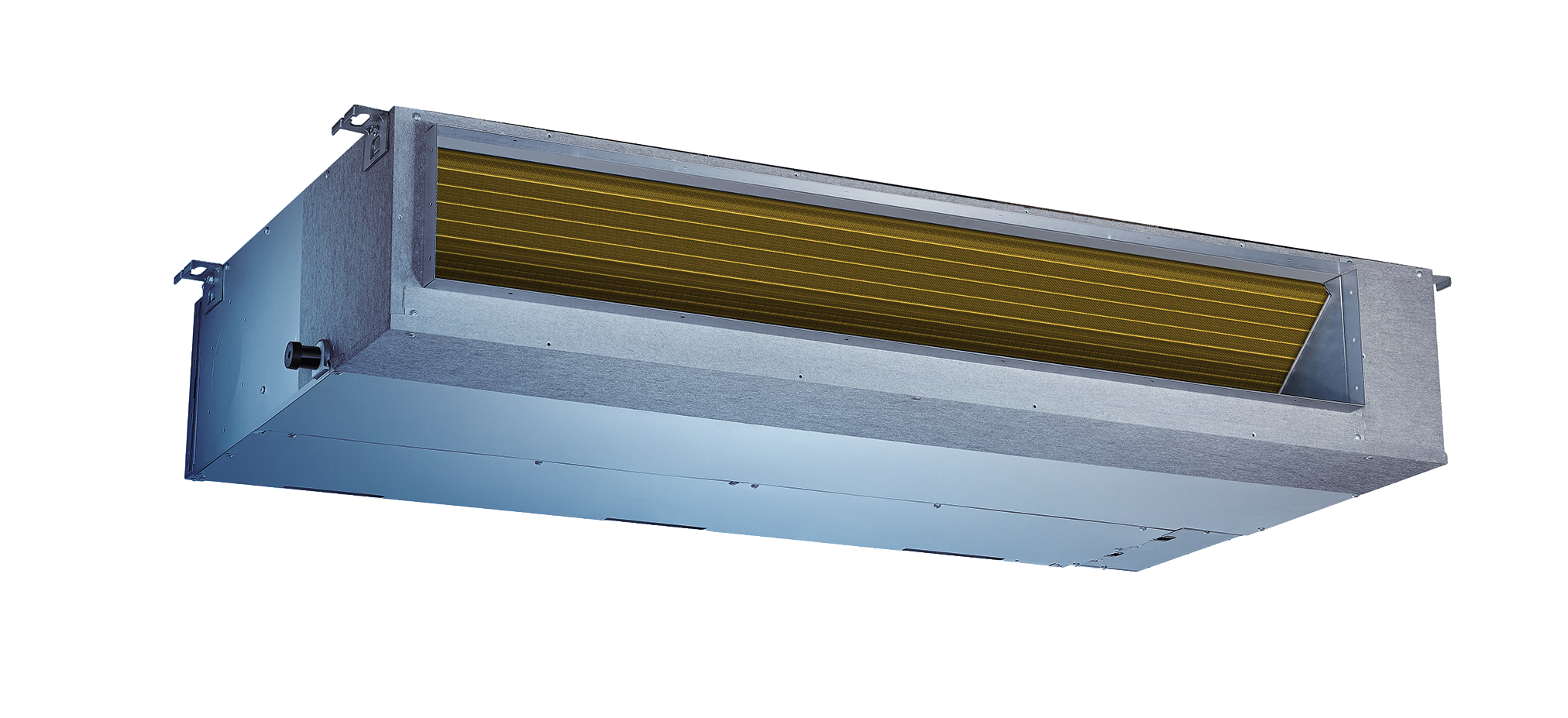

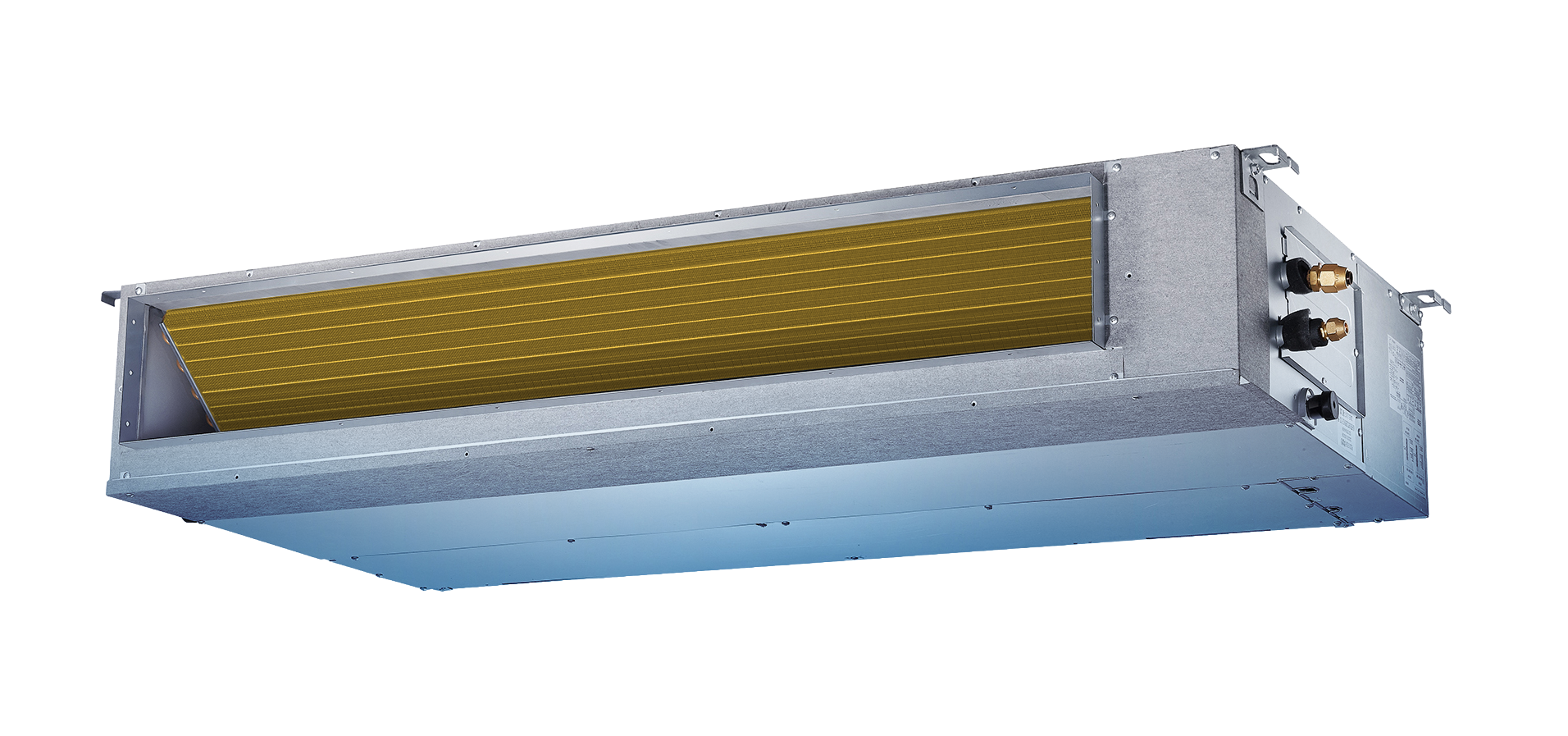

"The incredibly dynamic 48K Btu Slim Duct from Cooper&Hunter is the ultimate HVAC solution designed to meet various climate control needs with precision and efficiency, utilizing the new R454B refrigerant. This unit is perfect for Single-zone and Light Commercial applications. The slim design of Cooper&Hunter's duct units allows for seamless installation in tight spaces, such as ceilings or walls, ensuring a sleek and unobtrusive appearance.
With High Static pressure capabilities, the Slim Duct ensures consistent performance across different settings and up to 17.1 SEER2 rating for optimal efficiency. Incorporating high-quality TU1 Copper Tubes, this unit delivers unmatched durability and superior heat transfer efficiency.
Equipped with a built-in smart kit, the Slim Duct offers seamless connectivity and remote control via the C&H app. The refrigerant sensor ensures optimal system operation, providing precise climate control.
Enjoy flexible installation options with the 48K Btu Slim Duct, which can be installed horizontally or vertically, catering to your specific space requirements.
Control Options include: Built-in Smart Kit with Downloadable C&H App, included Remote Control and Wall Thermostat.
"
Technical Specification
Refrigerant type
R454B
System type
Single Zone
Filter dimensions (WxD) (inch)
21.26x10.12
BTU Rated
48,000
Power source
208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day)
8.92
Voltage range (V)
187-253
Packing dimensions (WxDxH)
56.10 x 33.86 x 14.13
Key Features
0105

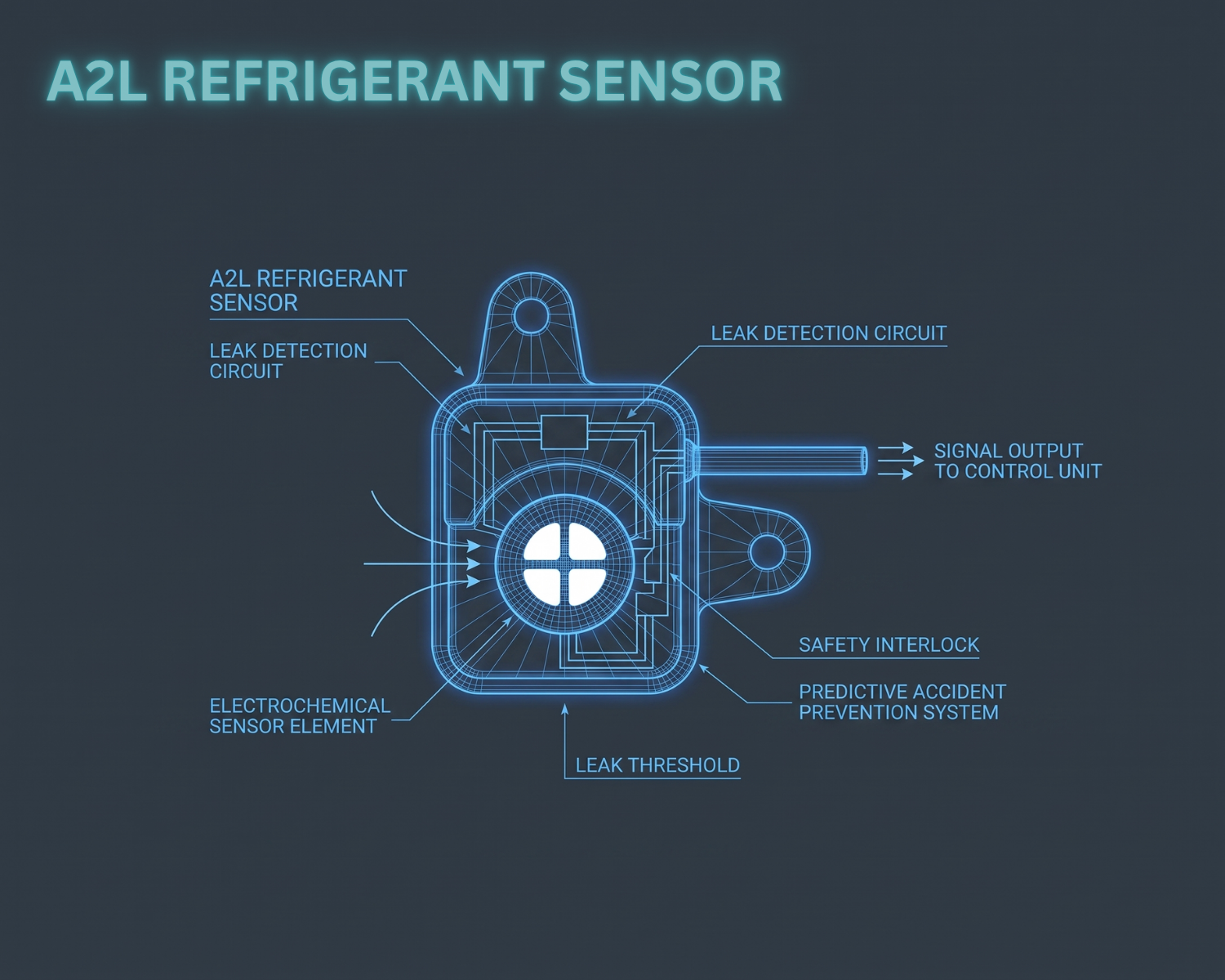

Refrigerant Sensor
refrigerant sensor is a safety device used in modern heating, ventilation, and air conditioning (HVAC) systems to detect leaks of mildly flammable A2L refrigerants (such as R-454B)
DIP SWITCH
The "Dip Switch" section, the unit offers dip switching between BTU ranges.
HIGH STATIC
Designed High-Static Pressure HVAC Units, Specialized commercial, Light Commercial or large residential units engineered with stronger blower motors explicitly built to push air through long, complex duct networks or multi-story layouts
Smart Kit
With the Smart Kit Technology the unit becomes fully Wi-Fi enabled and can be remotely controlled via the Cooper&Hunter app on any smartphone, including voice commands, scheduling, and more.
Multiple Fan Speeds
SPEED MODE options: the indoor AC unit can operate at different speeds, up to Turbo Mode with maximum capacity, giving more flexibility and options.
