SPAK-02

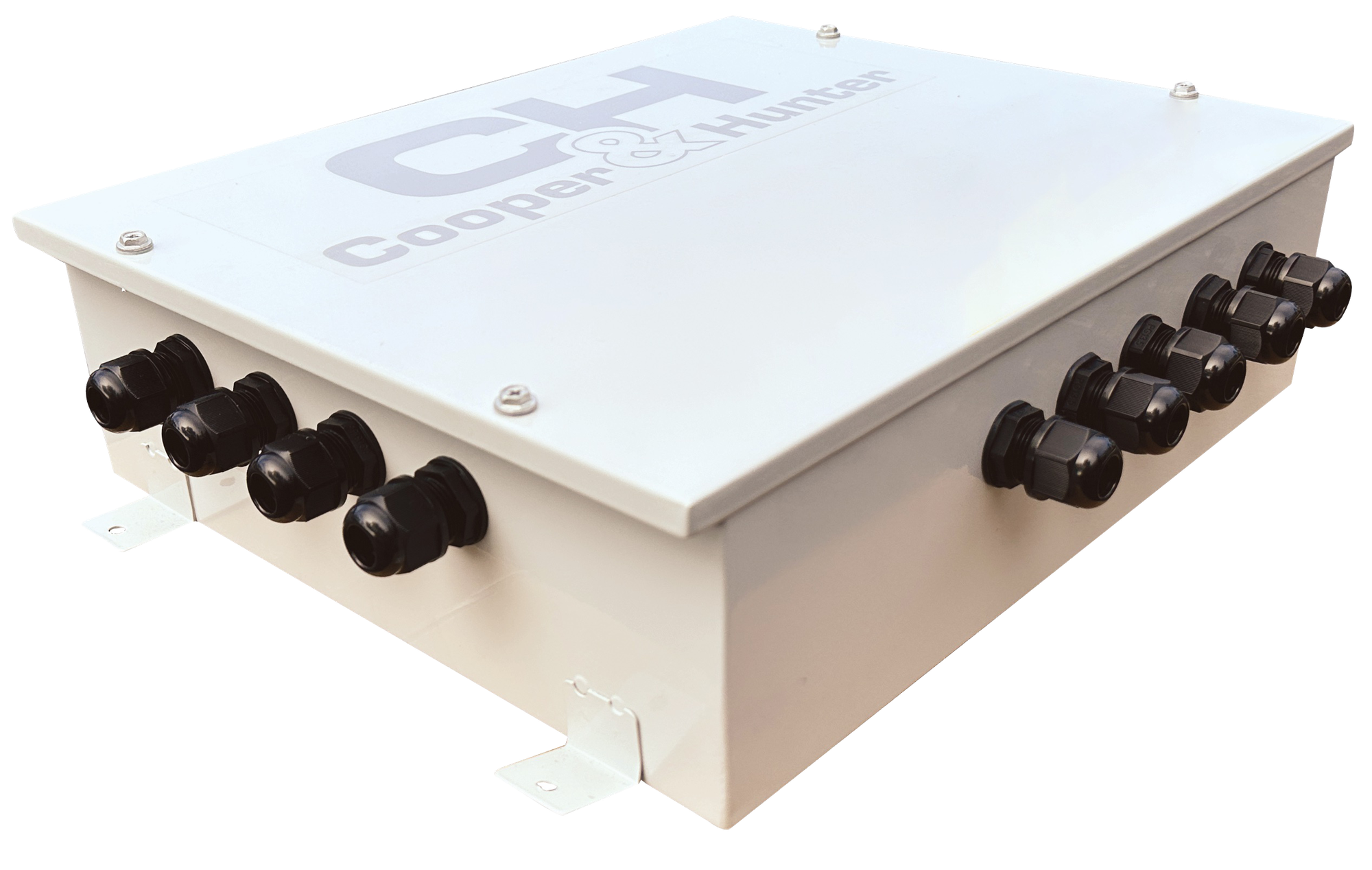

The AHU Kit is an adapter that connects custom air handling units to DVM S systems. It consists of a control PCB, an electronic expansion valve, pipe and air sensors, and works with standard AHUs or 100% outside air systems.
If you need some help with product please visit support page
support materialsFull Description
AHU Kit is an adapter that allows the connection of custom, air handling units (AHU) to DVM S systems. AHU Kit consists of a control PCB, electronic expansion valve, pipe, and air sensors. AHU Kits can be used for standard air handling units or for 100% outside air systems.
Technical Specification
Nom heat exchanger capacity of AHU
19kBtu/h(2HP)
Heat exchanger volume (in.3)
34.8～70.8
Equivalent indoor unit capacity
19kBtu/h(2HP)
Allowed heat exchanger capacity (kBtu/h) * Heating
15.7/19.1/24.2
Allowed heat exchanger capacity (kBtu/h) * Cooling
13.6/17.1/19.1
Cooling capacity (Min/Max) (BTU/h)
19kBtu/h(2HP)
Indoor unit dimension (W*H*D)
17-7/32*6-35/64*2-13/32
