SPAK-30
Description

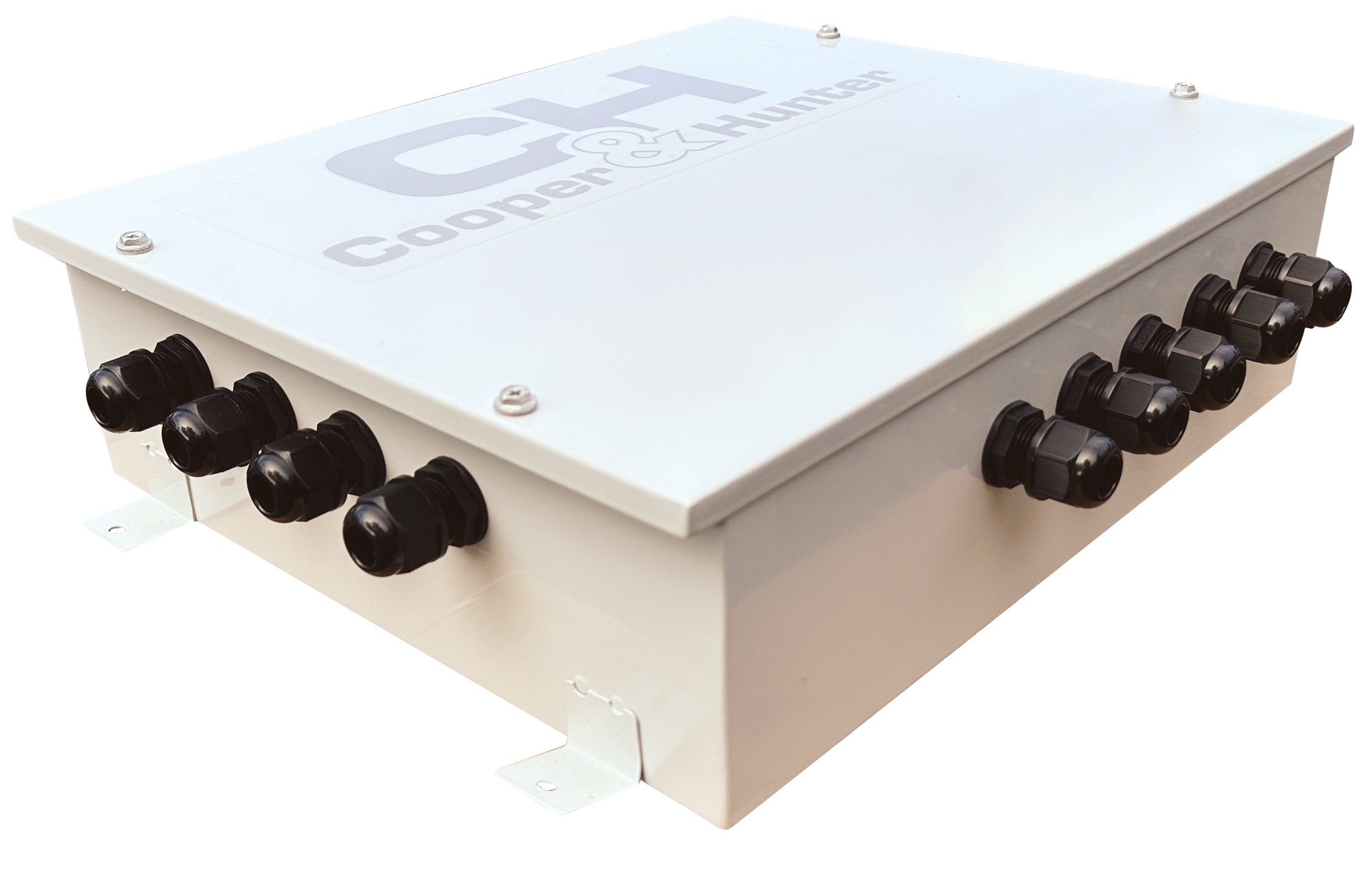

AHU Kit is an adapter that allows the connection of custom, air handling units (AHU) to DVM S systems. AHU Kit consists of a control PCB, electronic expansion valve, pipe, and air sensors. AHU Kits can be used for standard air handling units or for 100% outside air systems.
If you need some help with product please visit support page
support materialsNom heat exchanger capacity of AHU
212kBtu/h(22HP);232kBtu/h(24HP);250kBtu/h(26HP);272kBtu/h(28HP);287kBtu/h(30HP)
Heat exchanger volume (in.3)
551.7～679.2;579.7～753.0;634.0～786.6;695.1～845.8;754.3～898.9
Equivalent indoor unit capacity
212kBtu/h(22HP);232kBtu/h(24HP);250kBtu/h(26HP);272kBtu/h(28HP);287kBtu/h(30HP)
Allowed heat exchanger capacity (kBtu/h) * Heating
215.0/225.2/235.4; 235.4/255.9/264.4;264.4/269.6/281.5;281.5/293.4/307.1;307.1/313.9/324.2
Allowed heat exchanger capacity (kBtu/h) * Cooling
191.1/197.9/209.8;209.8/221.8/235.4;235.4/242.3/249.1;249.1/259.3/273.0;273.0/279.8/290.0
Cooling capacity (Min/Max) (BTU/h)
212kBtu/h(22HP);232kBtu/h(24HP);250kBtu/h(26HP);272kBtu/h(28HP);287kBtu/h(30HP)
Indoor unit dimension (W*H*D)
17-7/32*6-35/64*2-13/32
