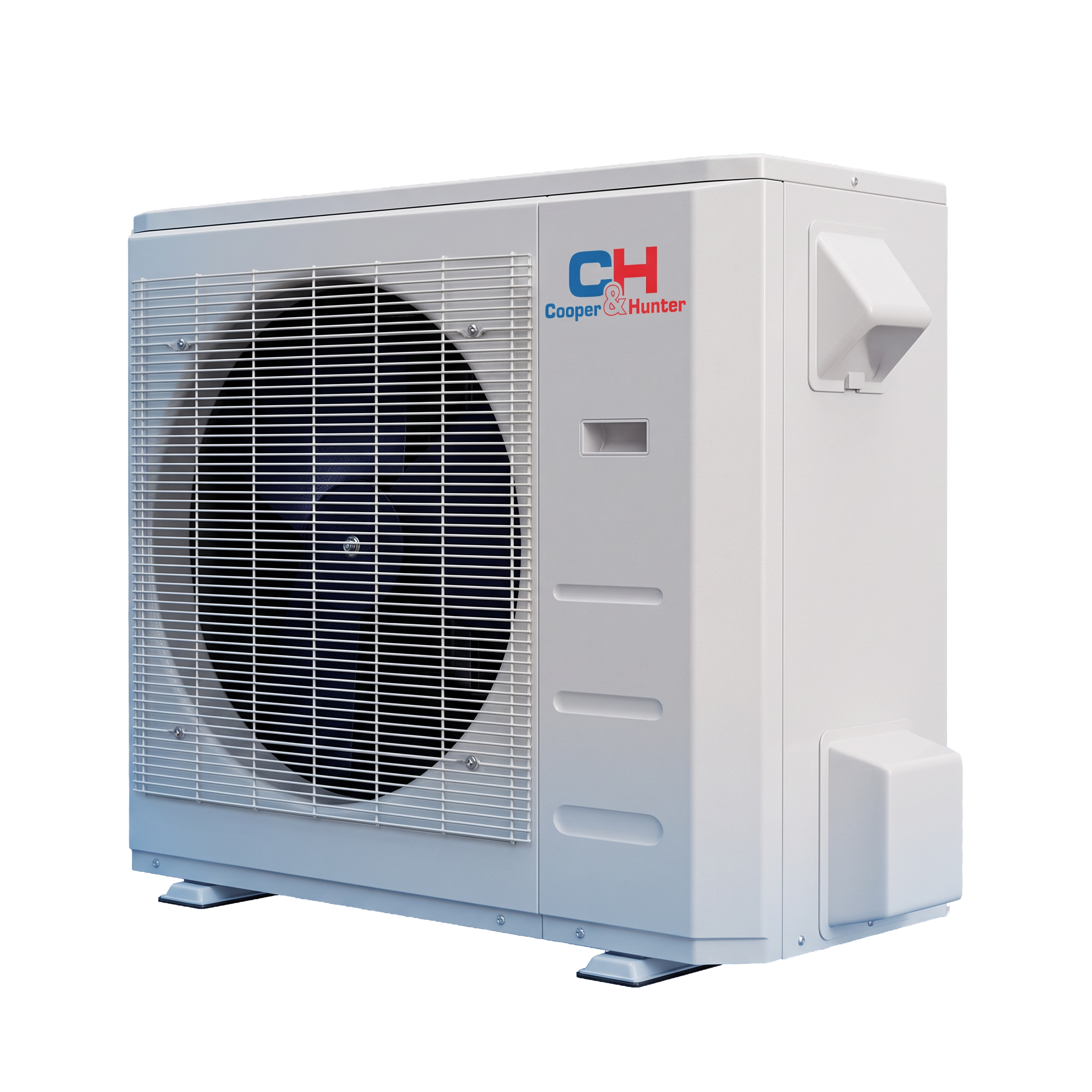

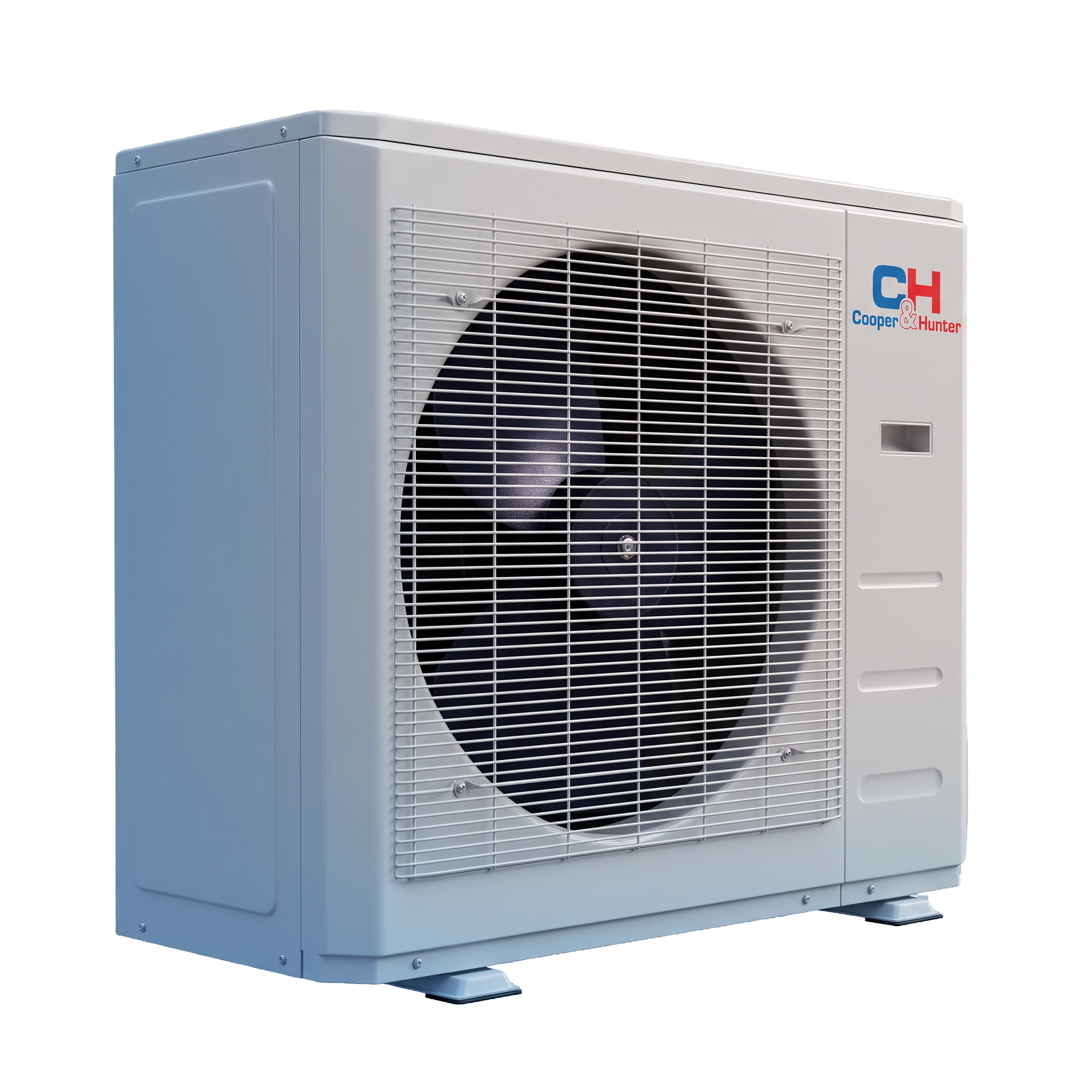

CH-EL30-230VO - COOPER&HUNTER Cooling and Heating Solutions
The ES condenser series features Energy Star Certified units from 6K to 36K Btu/h. Single and multi-zone models pair with wall mounts, cassettes, slim ducts, floor and ceiling units, consoles and air handlers, up to 20 SEER.
Single-zone unit
R410A
If you need some help with product please visit support page
support materialsCheck rebates for this model
Full Description
The ES condenser series features Energy Star Certified units in 6K, 9K, 12K, 18K, 24K, 30K, and 36K Btu/h options. Single and multi-zone models are available to be paired with Wall Mounts, Ceiling Cassettes, Slim Ducts, Universal Floor/Ceiling, Mini Floor Consoles, and Air Handler Units to reach up to 2 units. The EL series provides up to 20 SEER.
Technical Specification
Refrigerant type
R410A
System type
Single-zone unit
BTU Rated
30,000
Power source
208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day)
7.99
Max. pipe length (ft)
164.04
Voltage range (V)
187-253
Packing dimensions (WxDxH)
42.91x19.69x34.84
Key Features
0105
TU1 Certificate
The TU1 Certification ensures that the copper lines used in the units are a purer version, preventing corrosion and extending the unit's lifetime.
AHRI Certificate
AHRI is a globally recognized and industry-respected certification program for HVAC. To obtain AHRI certification, units undergo extensive laboratory testing under various conditions to ensure their efficiency.
Energy Star Certificate
ENERGY STAR Certified residential units are at least 10% more efficient than standard code-built homes and average a 20% improvement.
ETL Certificate
Intertek's ETL Mark is proof that your HVAC/R product has been tested and meets all safety requirements
NEEP Certificate
NEEP Certifies a more efficient energy future starts with action today. Your gift supports real change, lower energy bills, cleaner air, local jobs, and healthier communities. for HVAC
More Features
Inverter technology
The latest evolution of A/C technology saves energy as the compressor never turns off, but rather reduces electricity it needs for continuous heating and cooling.
