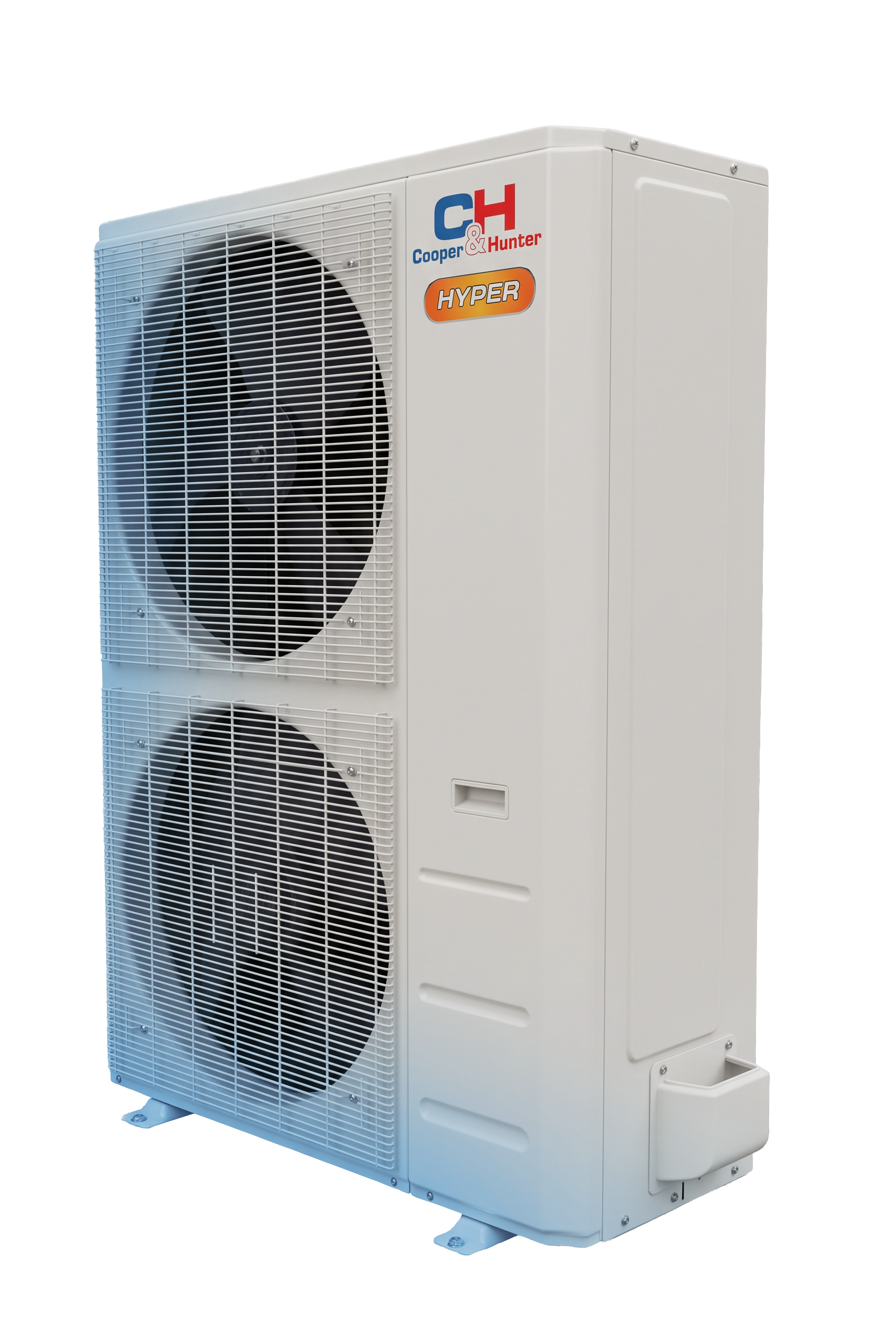

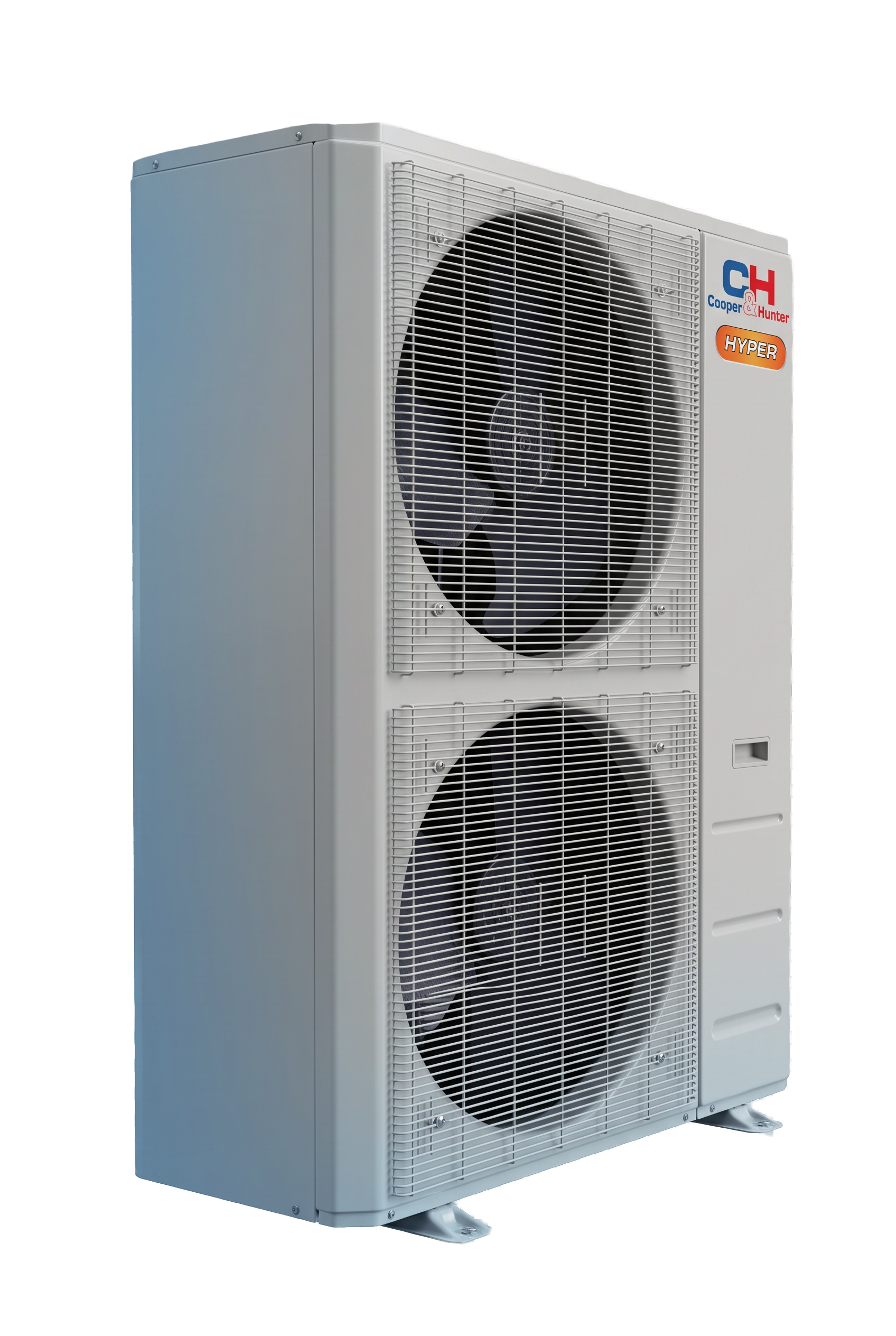

CH-HPR48M-230VO - COOPER&HUNTER Cooling and Heating Solutions
The Multi Zone Hyper Heat condenser series, available in 19K, 28K, 36K, 48K and 55K capacities, cools and heats in ambient temperatures as low as -22°F with up to 22 SEER, serving up to five independent indoor zones.
Multi-zone unit
R410A
If you need some help with product please visit support page
support materialsCheck rebates for this model
Full Description
The new C&H Multi Zone Hyper Heat condenser series, which is available in 19K, 28K, 36K, 48K, and 55K capacities, provides dependable cooling and heating in ambient temperatures as low as -22°F with up to 22 SEER. These outdoor units can accommodate up to 5 independent zones with a mix-and-match of indoor model types including Wall Mounts, Ceiling Cassettes, Universal Floor/Ceiling, Mini Floor Consoles, Slim Ducts, and Air Handler Units.
Technical Specification
Refrigerant type
R410A
System type
Multi-zone unit
BTU Rated
48,000
Power source
208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day)
6.85
Max. pipe length (ft)
262
Voltage range (V)
187-253
Packing dimensions (WxDxH)
43.11x19.49x58.27
More Features
Inverter technology
The latest evolution of A/C technology saves energy as the compressor never turns off, but rather reduces electricity it needs for continuous heating and cooling.
